Smith Machine S9000 | Multipower Machine

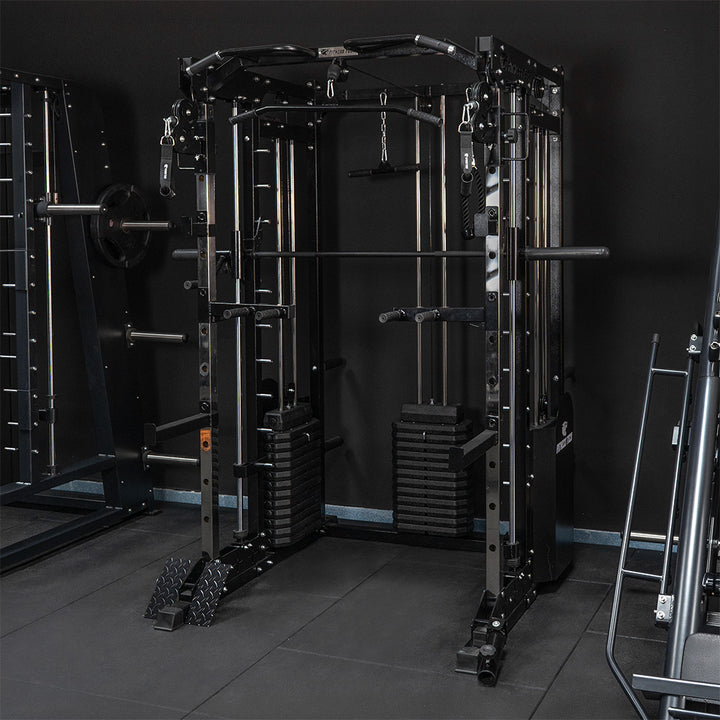

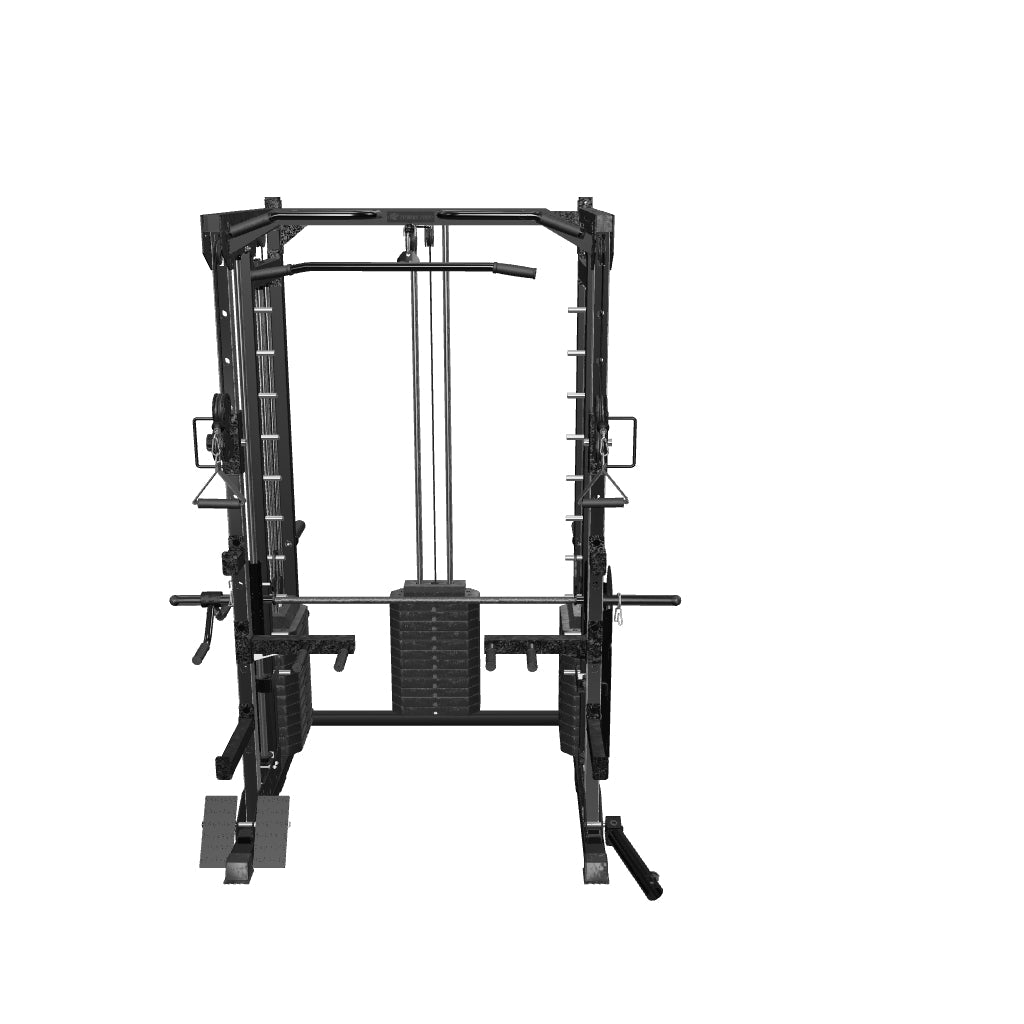

Smith Machine S9000: Advanced multipower with 3 weight towers

The Smith Machine S9000 is an advanced training station designed for those looking to set up a complete and powerful home gym. It combines a guided Smith bar, side pulleys, and an independent central pulley to offer a smooth, stable, and versatile strength training experience. Its reinforced steel frame and integrated loading system allow for varied, comfortable, and safe workouts within a single compact unit.

With three integrated weight towers, a total load of 225 kg, and an optimized work design, the S9000 delivers smooth response on every repetition and exceptional adaptability. From basic strength exercises to more advanced routines, this multipower adjusts to different levels and goals, providing a complete workout in any home space.

Multifunctional multipower with guided bar, side pulleys, and central 1:1 pulley

The S9000 combines in a single machine everything needed to train the entire body: squats, bench press, pulldowns, rowing, flyes, pull-ups, and functional movements. Its central pulley with a 1:1 ratio allows working with direct loads and more powerful movements, while the side pulleys offer a smooth and controlled range of motion for analytical and isolation exercises. This combination enables the creation of balanced, varied, and efficient routines without additional equipment.

Features

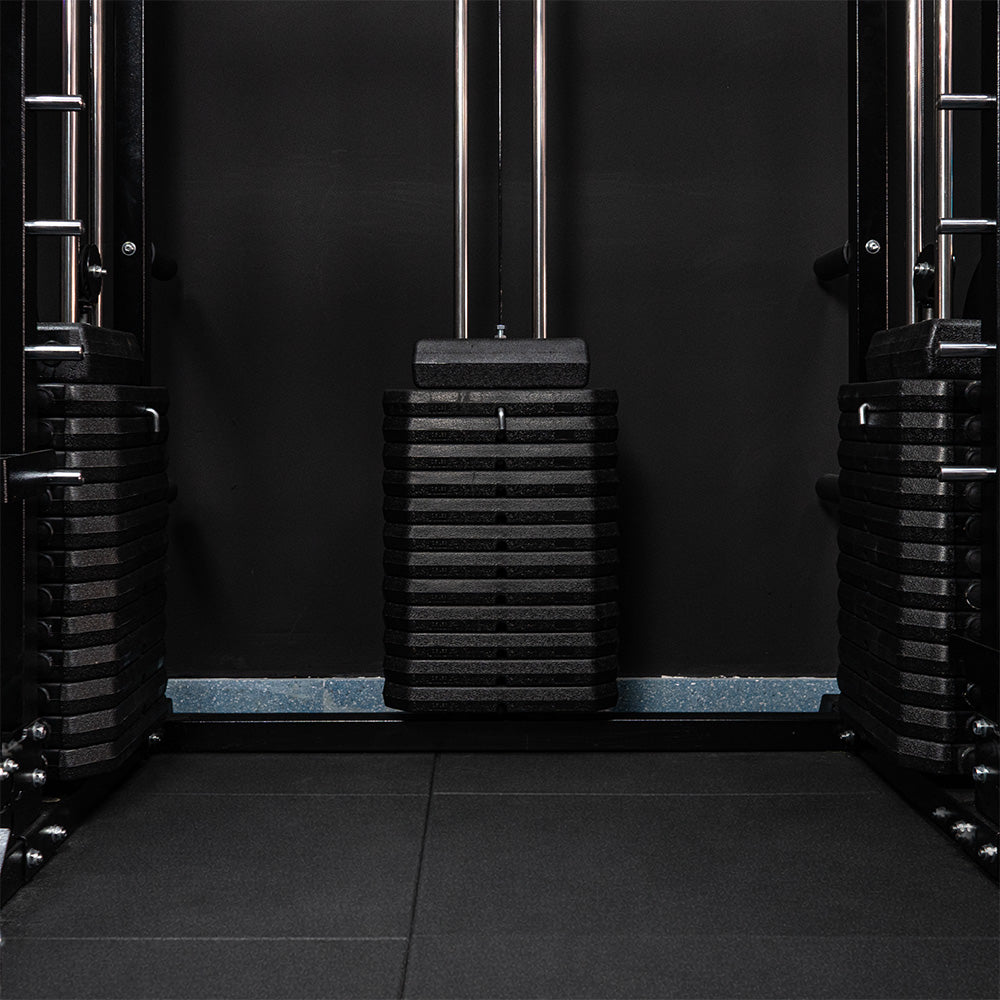

• Three integrated weight towers (225 kg total): allow quick and precise load adjustment, adding more variety and fluidity to your workout without the need for additional plates.
• Central pulley with 1:1 ratio: ideal for heavy rowing, direct pulldowns, and movements requiring work with actual weight.
• Side pulleys with 2:1 ratio: provide smooth and controlled movement for isolated back, chest, shoulder, and arm exercises.
• Guided Smith bar with 25/50 mm coupling: perfect for squats, bench press, and strength exercises with greater stability and safety.
• Full-range pulley system: allows work on both high and low pulleys without limitations.

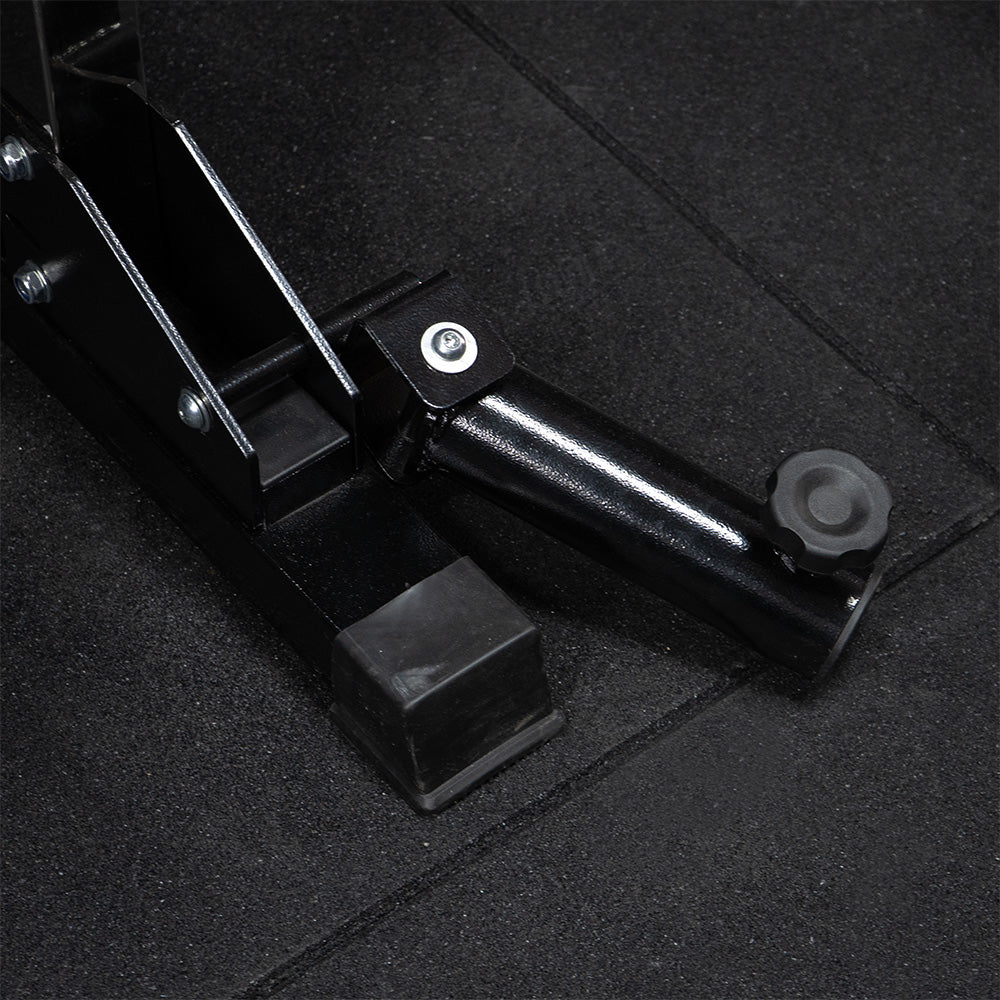

• Included landmine: expands functional training options, allowing rows, diagonal presses, and rotational movements.
• High-strength braided steel cables: ensure smooth pull, durability, and stability in every repetition.
• Reinforced steel frame: designed to offer maximum stability during intensive home workouts

Specifications

• Dimensions: 135 × 147 × 217 cm
• Weight: 360 kg
• Total counterweight: 225 kg (75 kg in each of the 3 towers)
• Weight of each plate: 5.7 kg
• Smith bar length: 190 cm
• Smith bar weight: 10 kg
• Recommended load on the Smith bar: 150 kg
• Maximum load supported by the Smith bar: 200 kg
• Central pulley: 1:1 ratio
• Side pulleys: 2:1 ratio
• Steel cable diameter: 5 mm
• Steel frame: 50 × 50 × 2 mm tubing

Included accessories

• Complete grip set: includes straight bar, triceps rope, individual handles, and chains to expand exercise combinations on high and low pulleys.
• Integrated landmine: perfect for functional push, pull, and rotational exercises.
• Integrated guided Smith bar built into the frame.
• Multi-grip pull-up bar located at the top.
• Integrated weight towers with included plates (225 kg total).
• Supports and blockers: J-cups, side safety bars, auxiliary supports, and adjustment pieces to work with the Smith bar or free bar with total stability.


Manual and maintenance

• Manual
• Recommended maintenance

S8000 vs S9000
