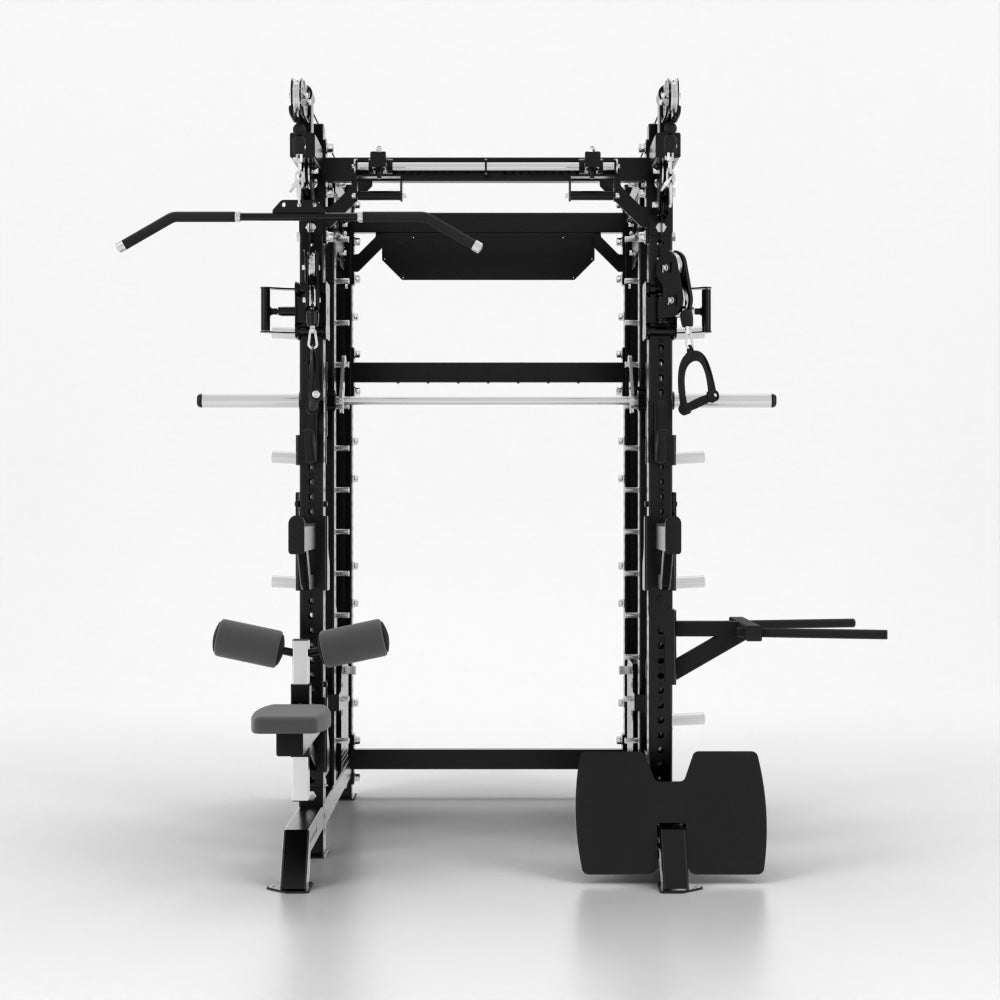

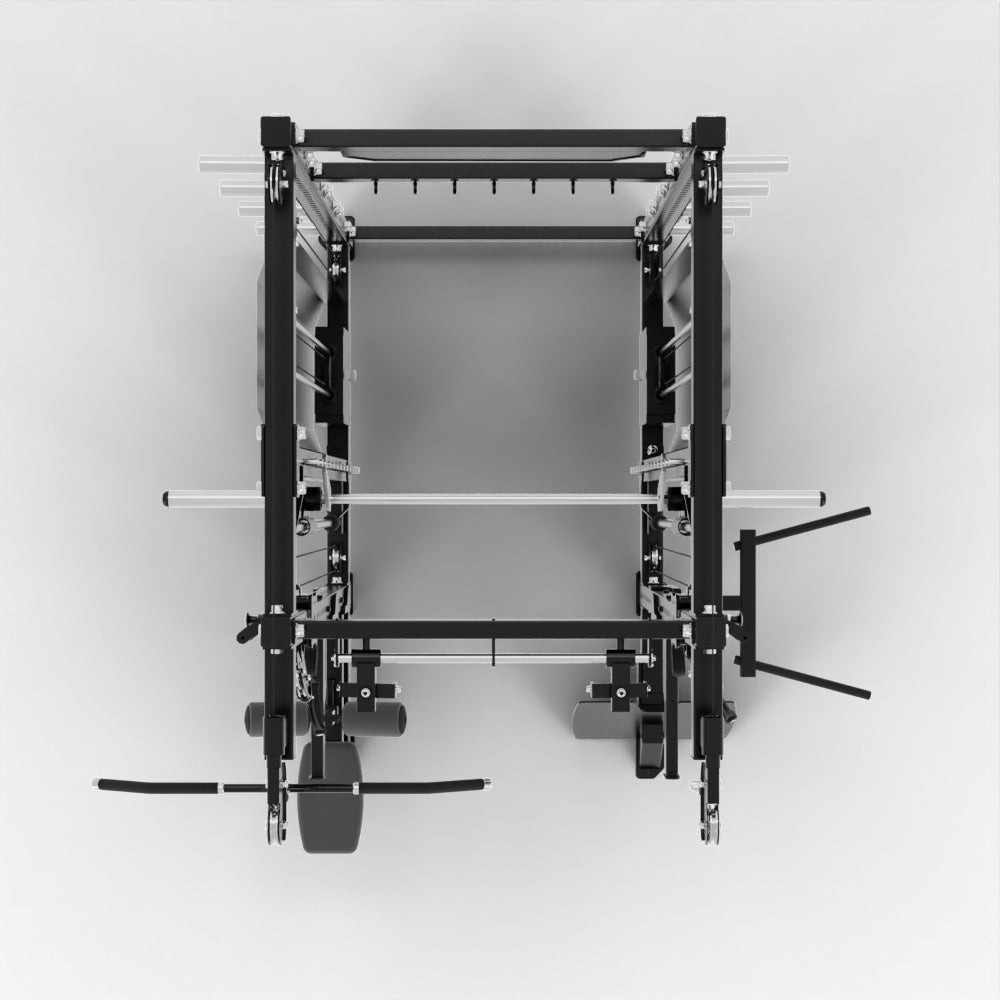

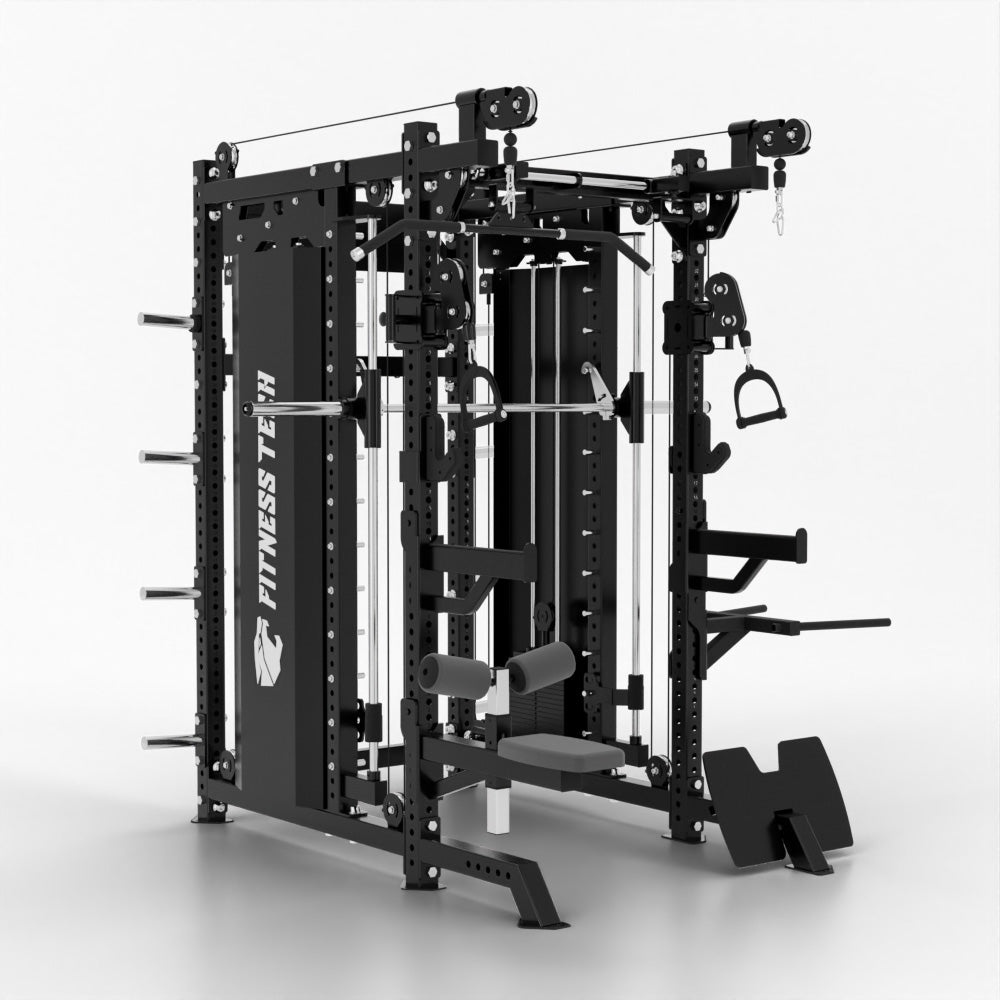

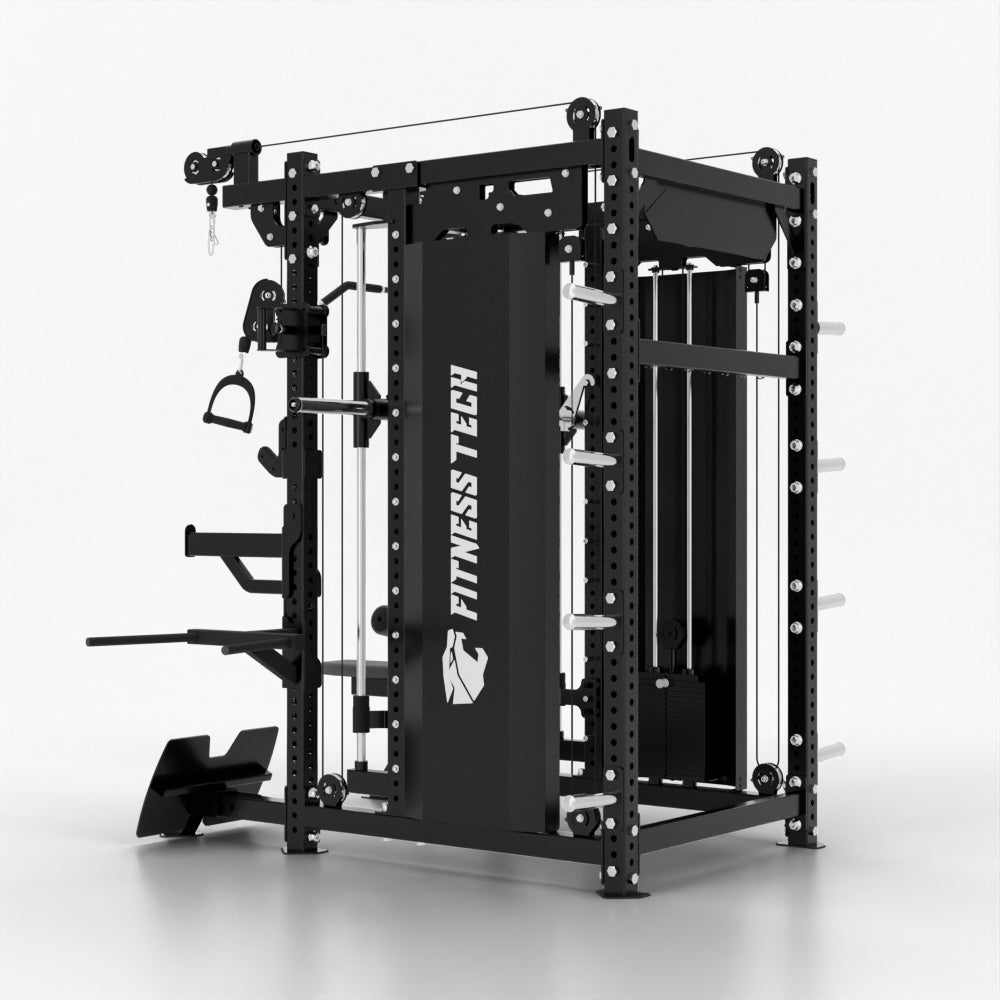

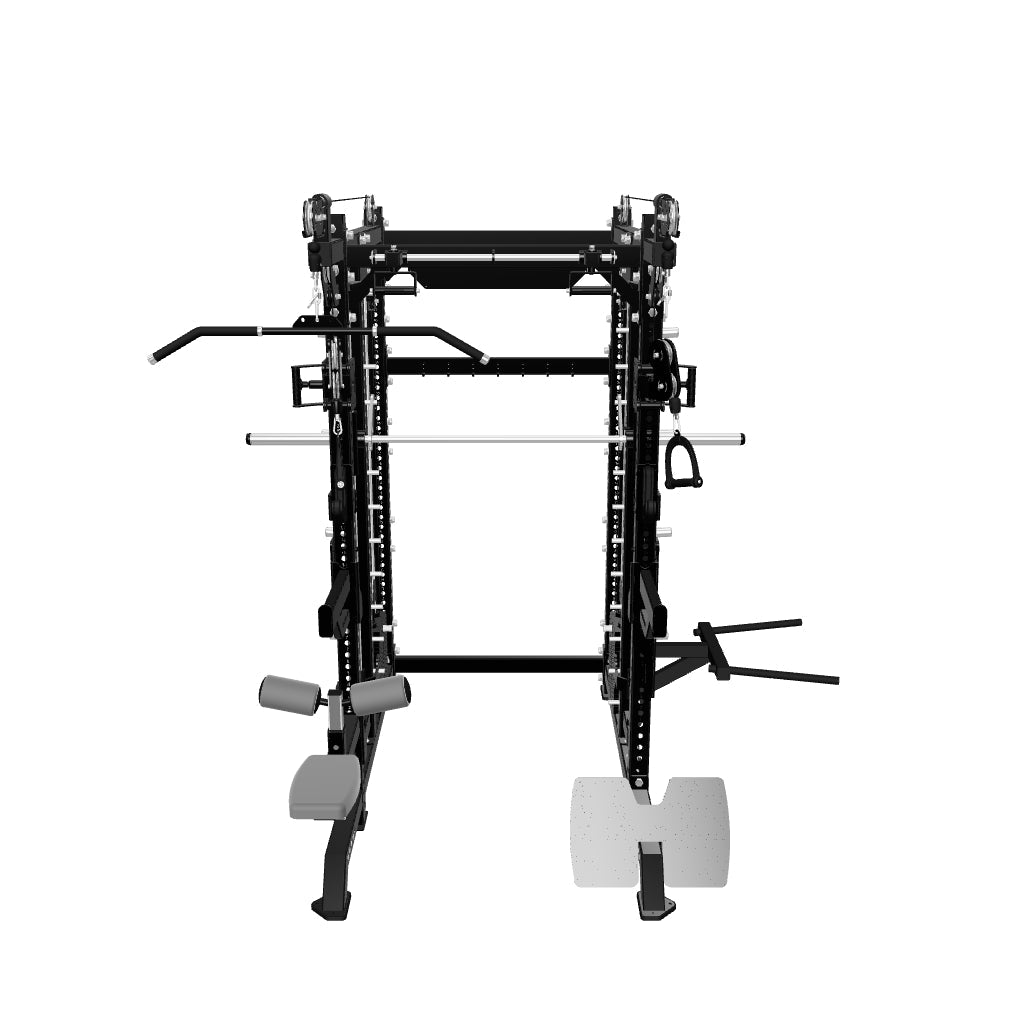

Smith machine multipower F60

F60: Power Cage, Cable Crossover, and Smith Machine in a Single Station

The Fitness Tech Smith Machine F60 is the most complete training station in the range, designed to equip commercial gyms and demanding users who want no limits. It combines in a single structure a professional power rack, a dual-tower functional cable crossover, and a Smith Machine with Olympic guide, all built on a Q235 steel profile measuring 80×80 mm with 3 mm thickness featuring 32 vertical adjustment levels on each column.

With a total weight of 692 kg and load capacities of up to 300 kg on the Smith bar and 100 kg per cable tower, it is a machine built to last and perform at the highest level. Its complete accessory kit included — J-Cups, safety arms, lat pulldown bar, dip station, seated pulldown rollers, D-grips, and foot support — makes the F60 a turnkey solution to work virtually any muscle group.

Functional Cable System with 2:1 Ratio

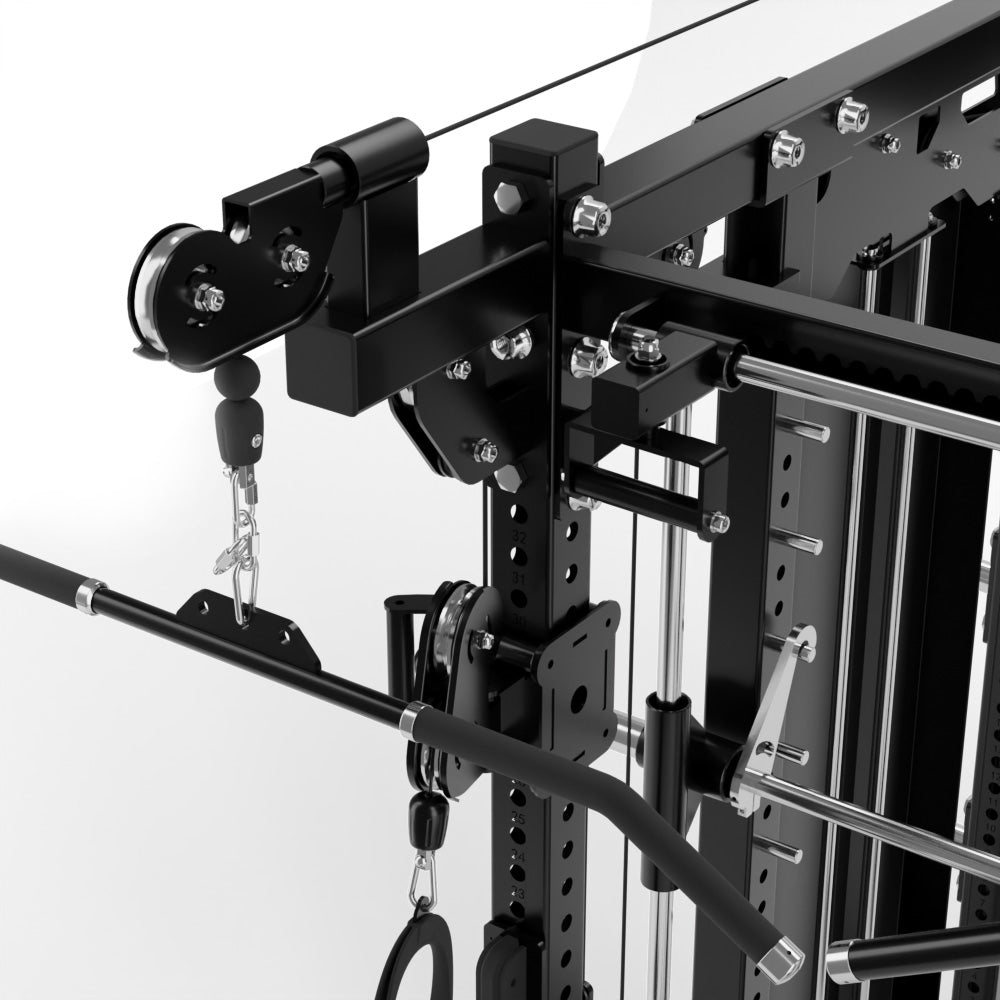

The F60 cable crossover features a 2:1 cable ratio and 4 independent pulleys — two upper for lat pulldown and pulling exercises, and two lateral for functional crossover at any angle — with two towers of 100 kg each. The system’s precision ensures constant and smooth tension throughout the range of motion, ideal for isolation, functional, and cross-training exercises.

Pull-up Bar with Adjustable Sliding Grips

The integrated pull-up bar supports up to 300 kg and features two repositionable sliding grips along its entire length, allowing grip width adjustment without tools. Wide, close, or neutral grip in seconds — a distinguishing detail that makes a difference in back and biceps training.

Main Features

• All-in-one station: power rack, functional cable crossover, and Smith Machine in a single structure.
• Ultra-resistant structure: Q235 steel, 80×80 mm profile, 3 mm thickness.
• 32 vertical adjustment levels: precise laser cut on each column to position accessories with total accuracy.
• 2:1 pulley system: 4 independent pulleys — 2 upper for pulldown and pulling, 2 lateral for functional crossover — with dual towers of 100 kg each.
• Professional Smith Machine: 2.2 m Olympic bar with 12 mechanical safety positions and up to 300 kg load capacity.
• Adjustable pull-up bar: two repositionable sliding grips, 300 kg capacity.

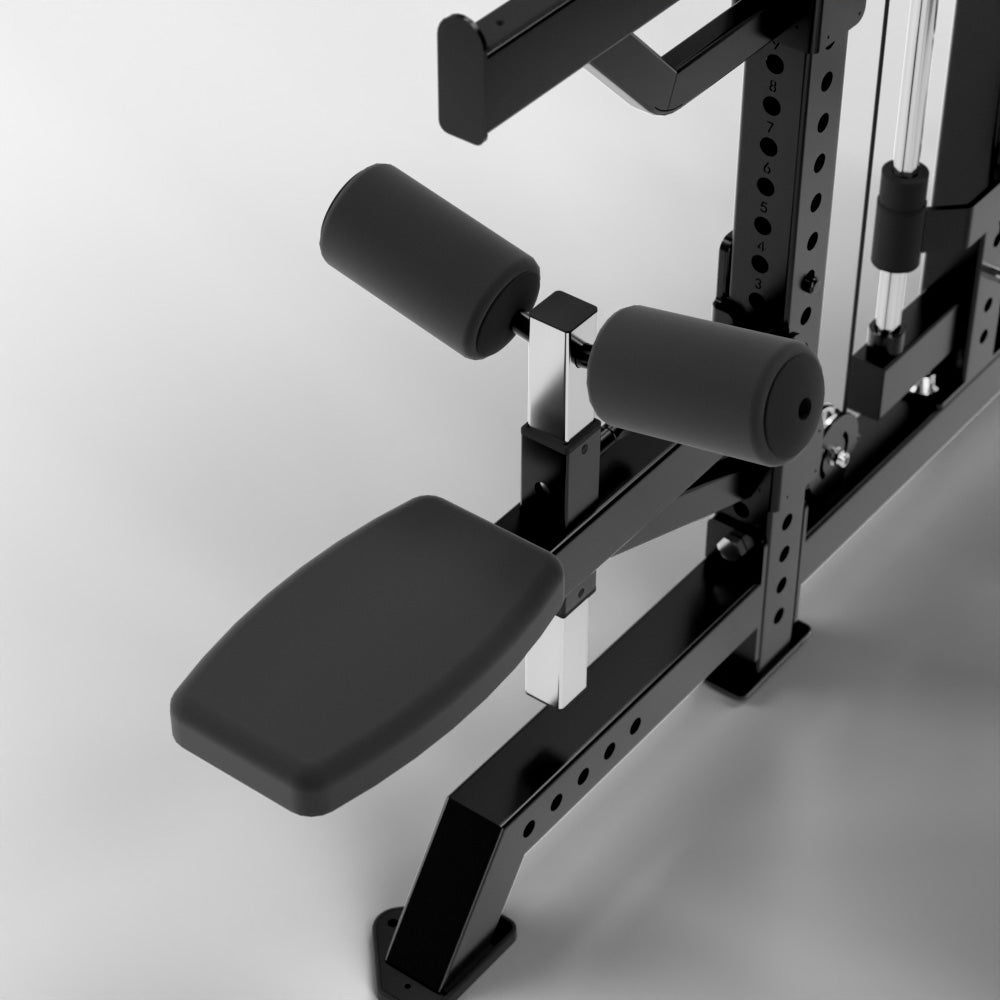

• Complete accessory kit included: J-Cups, spotters, D-grips, lat pulldown bar, dip station, seated pulldown rollers, and foot support.

Technical Specifications

• Dimensions: 246 × 250 × 256 cm
• Total weight: 692 kg
• Maximum Smith Machine capacity: 300 kg
• Maximum pull-up capacity: 300 kg
• Pulley system: 4 independent pulleys (2 upper + 2 lateral), 2:1 ratio, dual towers of 100 kg each
• Smith bar: Olympic, 2.2 m, 12 mechanical safety positions
• Vertical adjustment levels: 32
• Structure: Q235 steel, 80×80 mm profile, 3 mm thickness

Included Accessories

• 2x J-Cups Hooks
• 2x Safety Arms (Spotters)
• 2x D-Grip Cable Handles
• 1x Lat Pulldown Bar
• 1x Dip Station
• 1x Seated Pulldown Roller

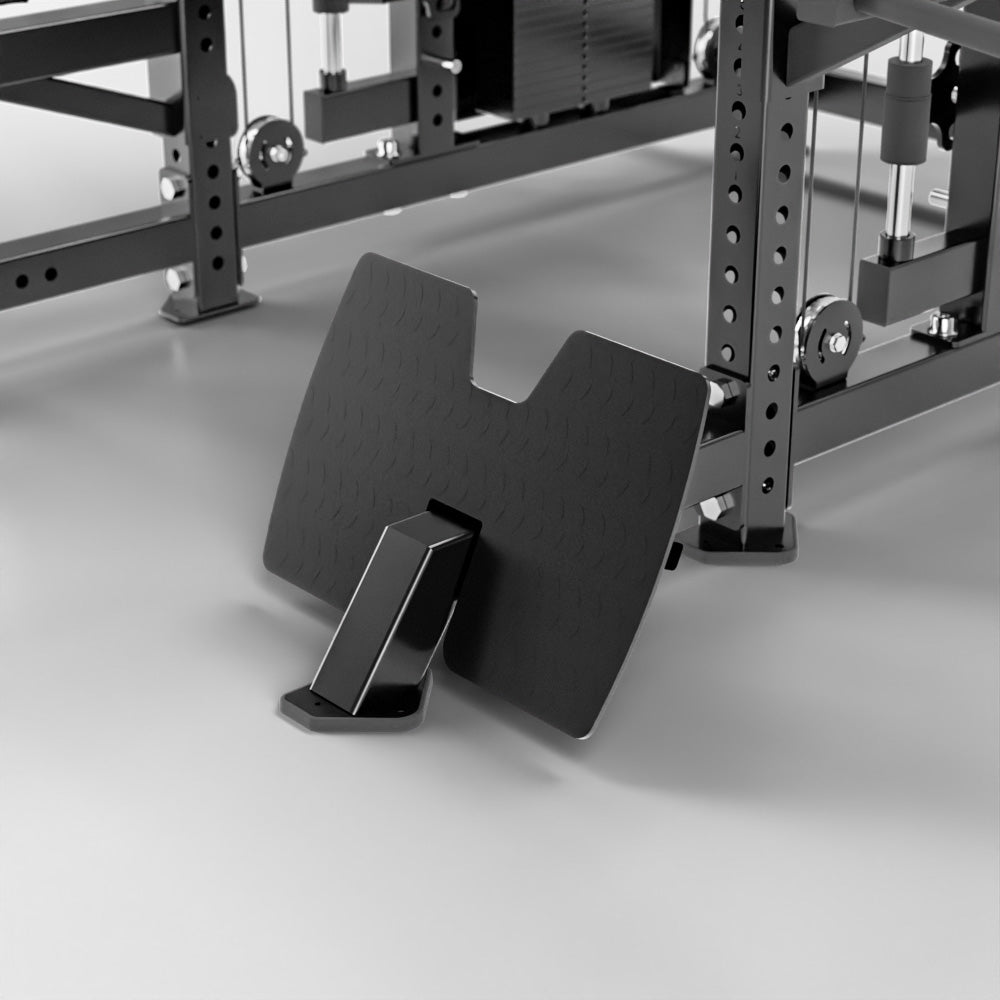

• 1x Foot Support
